Coiling
A coiling or coil is a curve, used for storing cable in compact and reliable yet easily portable form in lengths specified in standards. Coiling process is one of the critical operation in cable production steps cause of effects directly the loses.
What is Coiling?
A coiling or coil is a curve, used for storing cable in compact and reliable yet easily portable form in lengths specified in standards. Coiling process is one of the critical operation in cable production steps cause of effects directly the loses. Length measuring must be done preciously on coiling machines and lines. Shape of coils are also important for end user, coil quality makes the day on from perspective of labour time.
Basic Selling Forms:
- Products.Coiling.whatIs.forms.drums
- Products.Coiling.whatIs.forms.spools
- Products.Coiling.whatIs.forms.coils

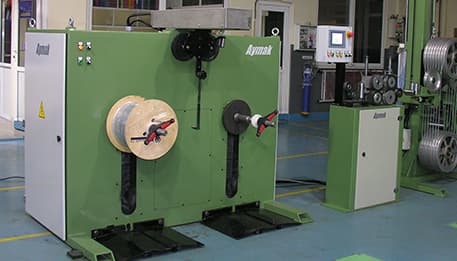

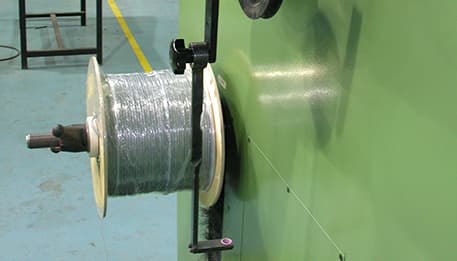

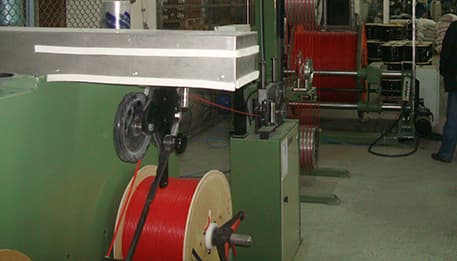

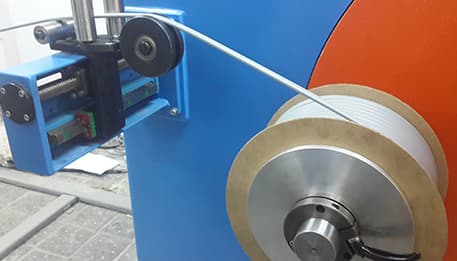

Wooden Reel Coiling Machine
Operations: Coiling
Product Gallery
| Reel Diameter | Max. Line Speed | Optional Equipments | Safety Regulation | System Voltage |
|---|---|---|---|---|
| Up to 600 | 150 | Cable Cutter | CE | 380V 50Hz / 460V 60Hz |

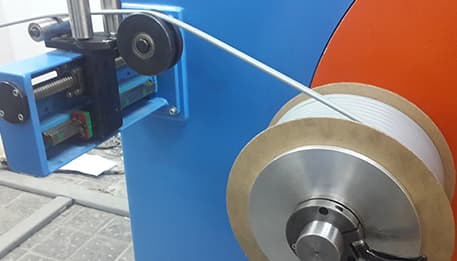

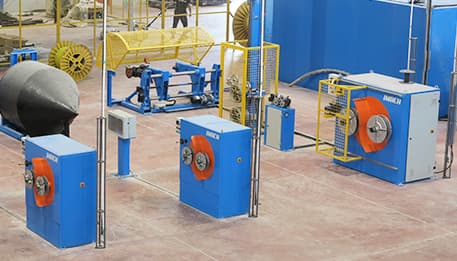

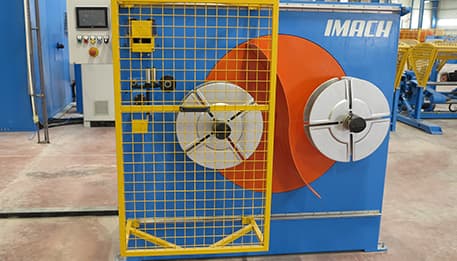

Semi-Automatic Coiling Machine
Operations: Coiling
Product Gallery
| Coil Diameter | Max. Speed | Optional Equipments | Safety Regulation | System Voltage |
|---|---|---|---|---|
| Up to 500 | 2 | Active Traverse Attachment - Cable Cutter | CE | 380V 50Hz / 460V 60Hz |

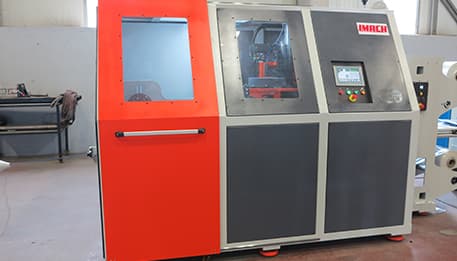

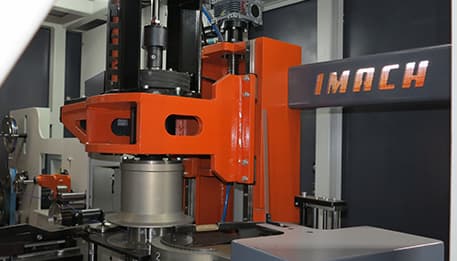

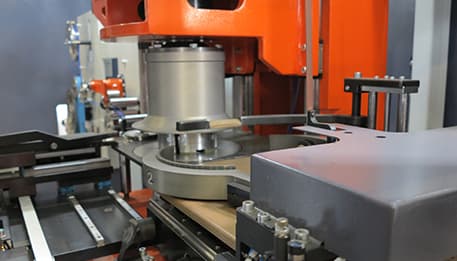

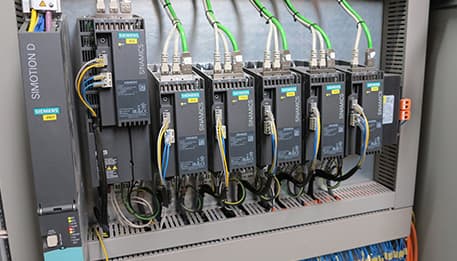

Automatic Coiling Machine
Operations: Coiling, Wrapping
Product Gallery
| Coil Diameter [mm] | Crossections [mm²] | Max. Speed [coil/min] | Safety Regulation | System Voltage |
|---|---|---|---|---|
| 260 | 0,75 - 6 | 3 - 3,5 | CE | 380V 50Hz / 460V 60Hz |
| 440 | 2x0,75 - 4x4 | 2 - 2,5 | CE | 380V 50Hz / 460V 60Hz |
Coiling Lines
Complete Coiling Lines
Our complete coiling lines integrate various coiling machines into a seamless production system. Contact us for custom line configurations tailored to your specific requirements.
Request a Quote
